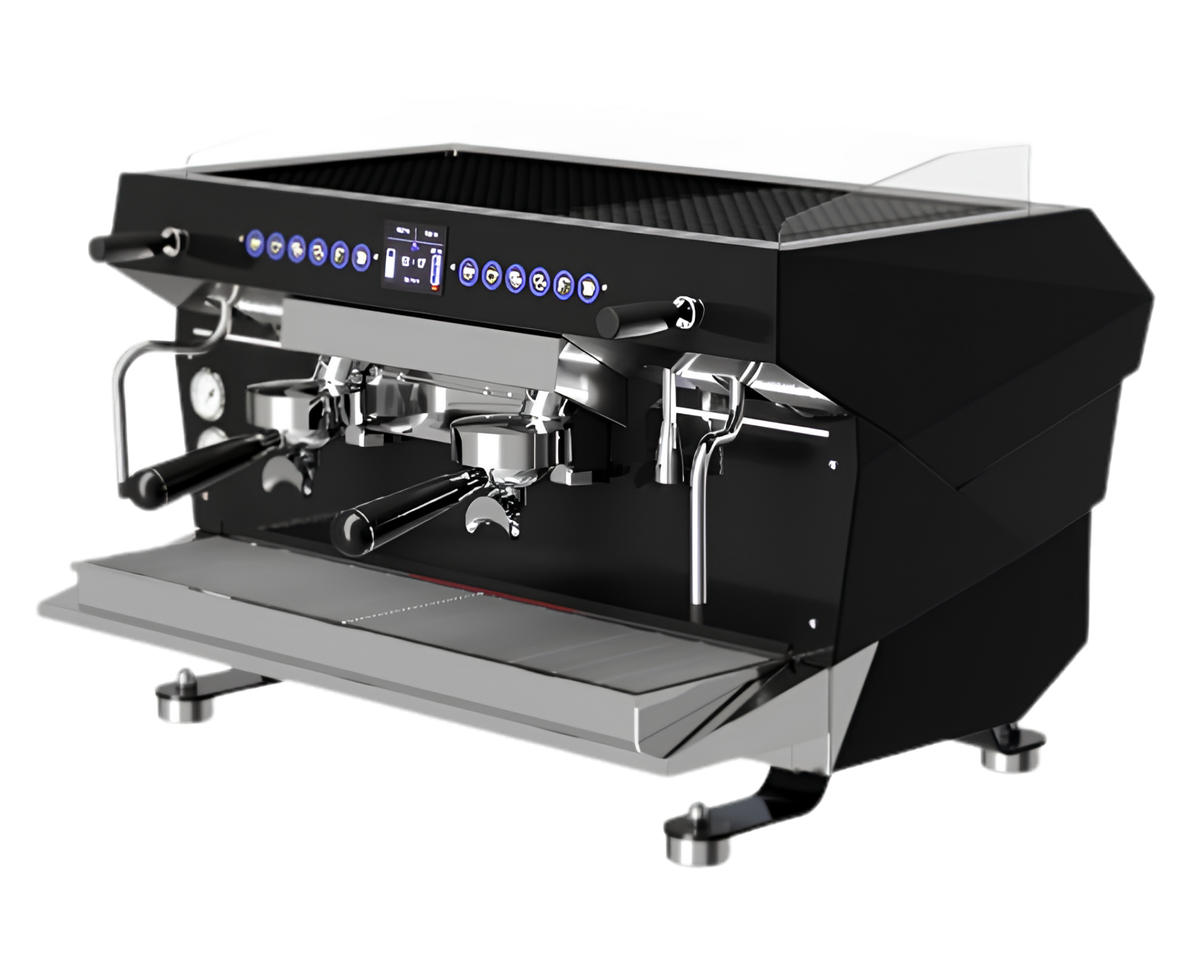

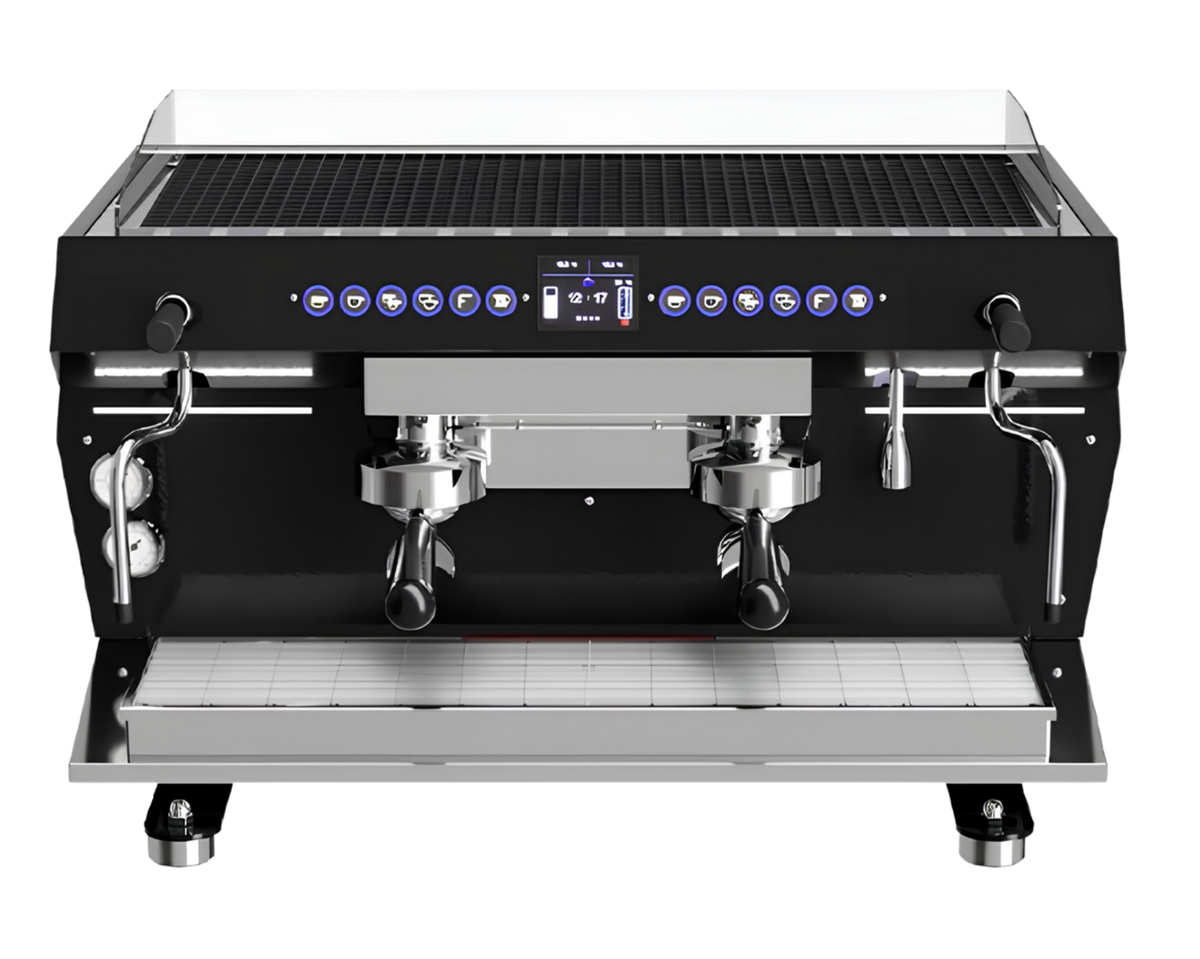

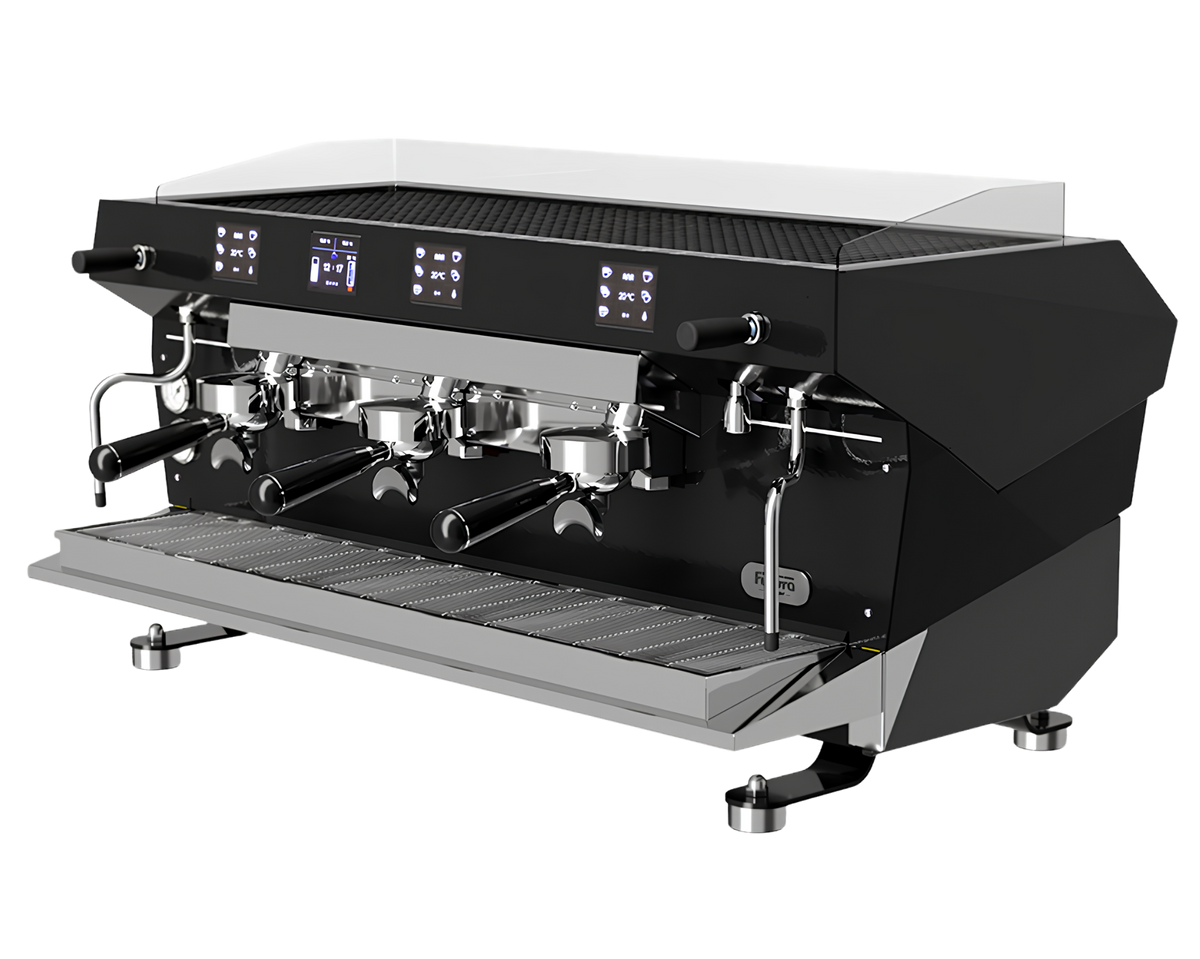

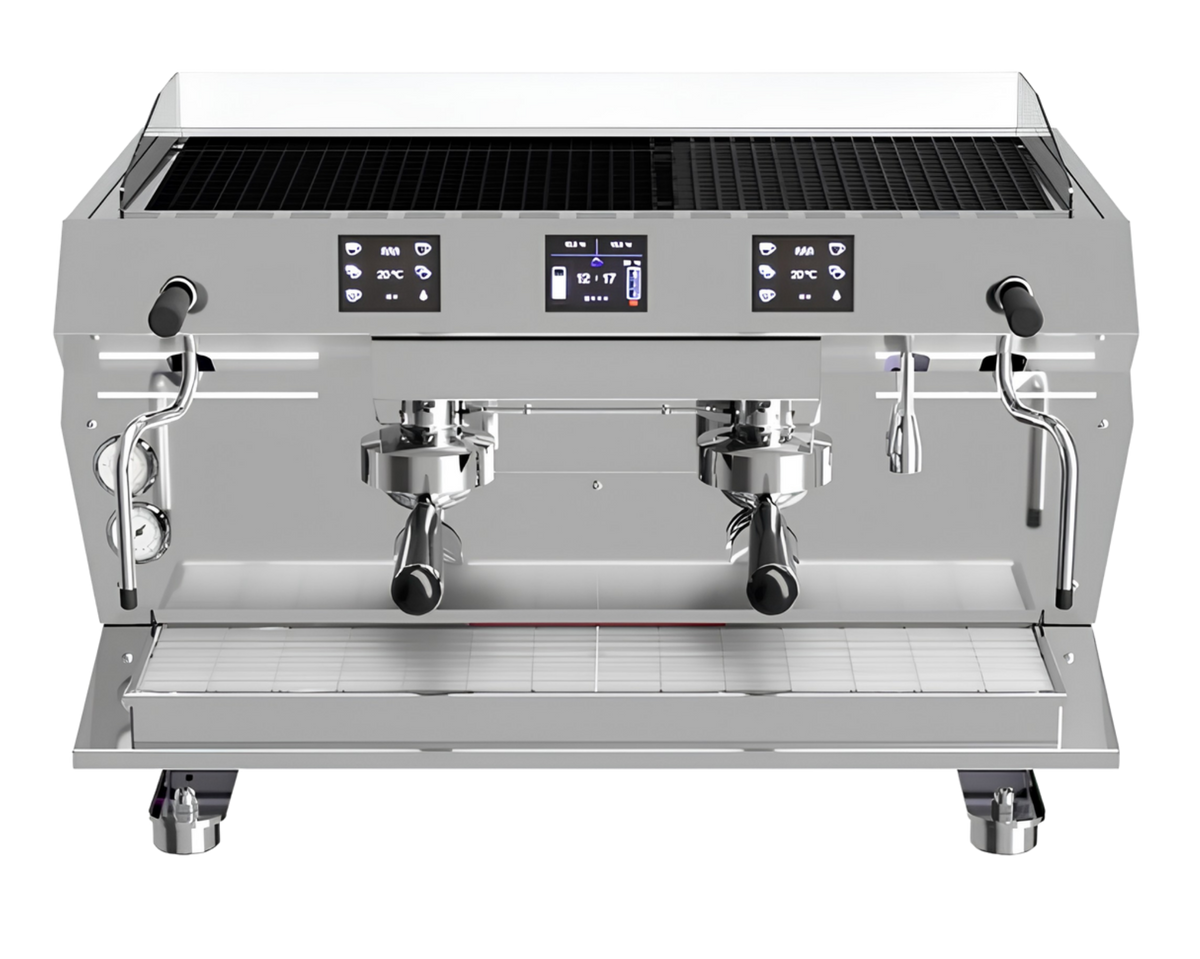

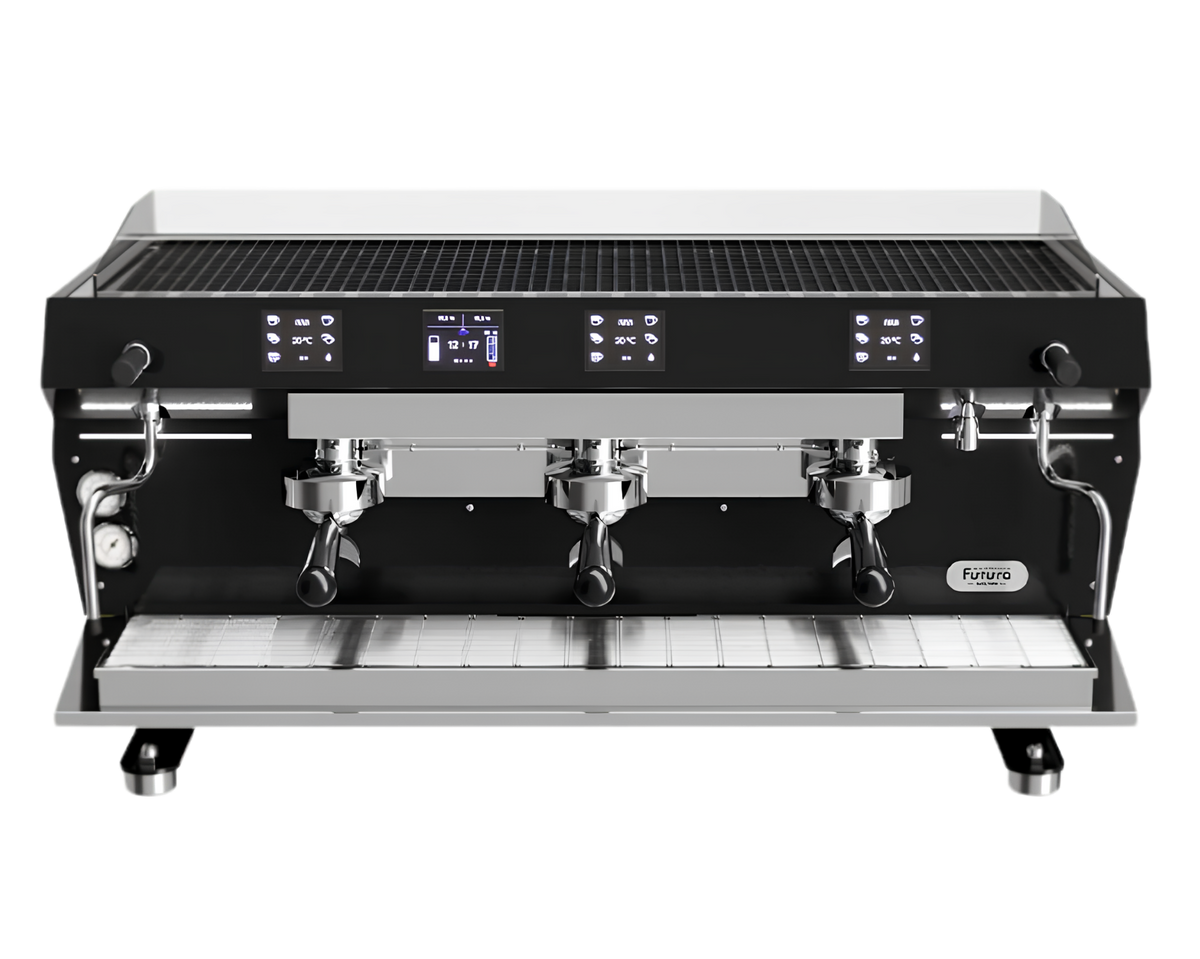

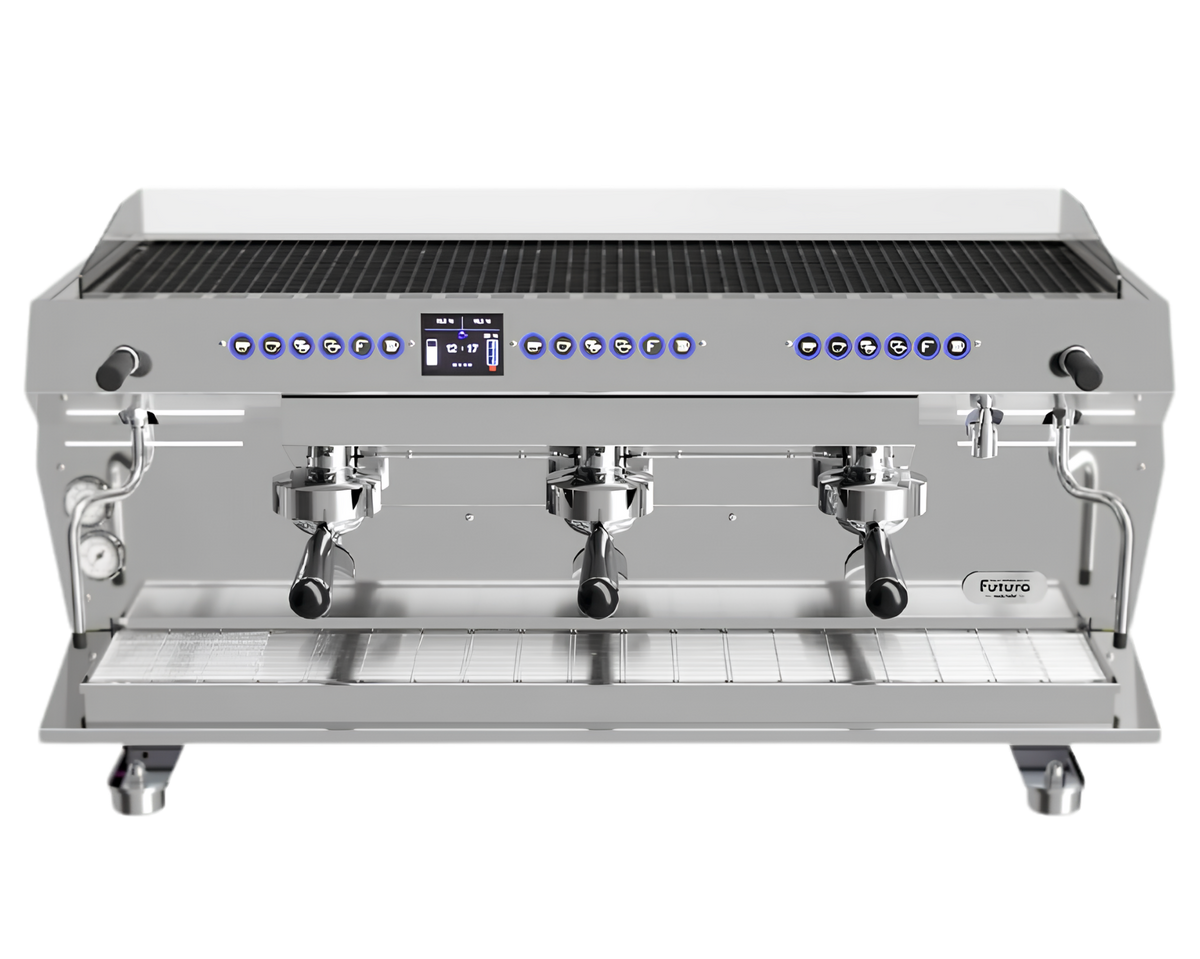

F500 SERIES

The Futura F500 is a high-performance commercial espresso machine designed for consistency, durability, and continuous output in demanding café environments.

Manufactured in Italy, it combines advanced control systems with robust construction, making it suitable for high-volume venues requiring stable performance across extended service periods.

Available in 2 group or 3 group configurations, the F500 can be specified as either a traditional heat-exchange system or an advanced multiboiler setup, allowing operators to tailor performance to their workflow.

Configuration Options

• 2 Group or 3 Group configurations

• Available as Heat Exchange (Standard) or Multiboiler

• Optional tall cup (high group) versions

• Optional touch display (MBT models)

• Stainless steel finish with optional custom elements

Core Features

• Heat Exchange or Multiboiler System

  • Heat exchange: simultaneous brewing and steaming

  • Multiboiler: independent coffee boilers for each group for increased thermal precision

• PID Temperature Control

  Electronic boiler temperature regulation for improved stability

• Volumetric Pump & Dosing

  Programmable shot volumes for consistent extraction

• Electronic Self-Level System

  Automatically maintains boiler water levels during service

• Multifunction Display

  Displays dose counters, maintenance cycles, temperature, and system alerts

• Dual Pressure Gauges

  Real-time monitoring of boiler and pump pressure

• Automatic Cleaning Cycle

  Simplifies daily maintenance and reduces downtime

Performance & Technical Specifications

Heat Exchange (Standard)

2 Group

• Boiler Capacity: 12.7L

• Heat Exchangers: 2 × 0.45L

• Power: 3,500W

3 Group

• Boiler Capacity: 19L

• Heat Exchangers: 3 × 0.45L

• Power: 4,500W

Multiboiler Configuration

2 Group

• Steam Boiler: 10L

• Coffee Boilers: 2 × 1.5L

• Power: 3,000W

3 Group

• Steam Boiler: 10L

• Coffee Boilers: 3 × 1.5L

• Power: 3,000W

All models operate on 230–400V power supply and are built for commercial-grade output.

Build & Workflow

• Stainless steel construction for durability and easy cleaning

• 2 × steam wands and 1 × hot water outlet

• LED-lit work area for improved visibility

• Designed for high-volume service with minimal manual adjustment

• Optional PC/cash desk interface integration

Best Suited For

• High-volume cafés and specialty coffee venues

• Hospitality environments with sustained peak demand

• Operators seeking advanced temperature control and scalability
